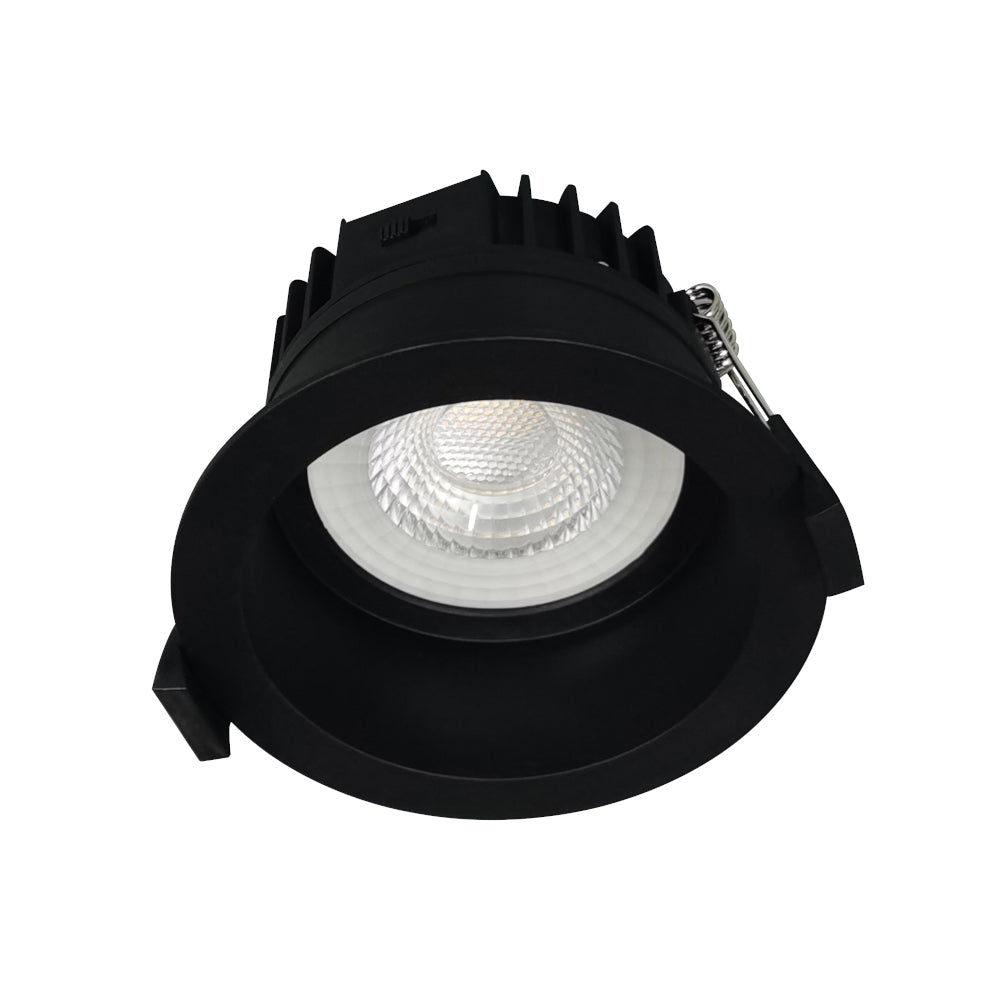

Name: MACRO 9w LED DOWNLIGHT 3CCT
Brand: Telbix
SKU: MACRO DL105-BK3C

Indoor Lighting Trade Selection

The MACRO 105 downlight has been specifically designed for today's domestic living spaces. The colour temperature of light can be customized to warm, natural or cool via an integrated slide switch on the fixture, and triac dimming is fully supported. Maximum lux is achieved via the custom lens which is deep set offering a low glare light source. Installation is simple with the fixture ready to plug into existing sockets.

RRP $35.00

In stock, ready to ship

Variations — BLACK

WHITE

BLACK

Find your nearest distributor

Use our Distributor Map to find your closest authorised Telbix distributor.

VIEW DISTRIBUTOR MAP

Are you interested in purchasing Telbix products as a business?

DISTRIBUTOR LOGIN

[{"id":44712539881659,"title":"WHITE","option1":"WHITE","option2":null,"option3":null,"sku":"MACRO DL105-WH3C","requires_shipping":true,"taxable":true,"featured_image":{"id":35565242941627,"product_id":7837346791611,"position":1,"created_at":"2024-06-25T02:29:35+10:00","updated_at":"2024-06-25T02:29:35+10:00","alt":null,"width":1000,"height":1000,"src":"\/\/www.telbix.com\/cdn\/shop\/files\/Macro_20DL105-WH3C_203000K_202_opeyee.jpg?v=1719246575","variant_ids":[44712539881659]},"available":true,"name":"MACRO 9w LED DOWNLIGHT 3CCT - WHITE","public_title":"WHITE","options":["WHITE"],"price":3500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"9329501063781","featured_media":{"alt":null,"id":27955948716219,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.telbix.com\/cdn\/shop\/files\/Macro_20DL105-WH3C_203000K_202_opeyee.jpg?v=1719246575"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44712539848891,"title":"BLACK","option1":"BLACK","option2":null,"option3":null,"sku":"MACRO DL105-BK3C","requires_shipping":true,"taxable":true,"featured_image":{"id":35565242974395,"product_id":7837346791611,"position":2,"created_at":"2024-06-25T02:29:35+10:00","updated_at":"2024-06-25T02:29:35+10:00","alt":null,"width":1000,"height":1000,"src":"\/\/www.telbix.com\/cdn\/shop\/files\/Macro_20DL105-BK3C_202.jpg?v=1719246575","variant_ids":[44712539848891]},"available":true,"name":"MACRO 9w LED DOWNLIGHT 3CCT - BLACK","public_title":"BLACK","options":["BLACK"],"price":3500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"9329501063774","featured_media":{"alt":null,"id":27955948748987,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.telbix.com\/cdn\/shop\/files\/Macro_20DL105-BK3C_202.jpg?v=1719246575"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Additional media

Colour and Material

Fixture Color: White
Fixture Material: Polycarbonate,Aluminium,Plastic
Cable Color: Black
Cable Material: PVC
Diffuser Color: Clear
Diffuser Material: Plastic

Size

Fixture Diameter (cm): 10.60
Fixture Height (cm): 7.00
Fixture Weight (Kg): 0.23
Cut Out (cm): 9

Specifications

Approvals: RCM
Assembly Required: No
Beam Angle (degree): 60
Box Contents (degree): Instruction
Color Kelvin: 3 CCT (3000k - 4000k - 5000k)
Color Rendering: >80
Color Temperature: Warm White; Natural White; Cool White
Dimmable: Yes - TRIAC
Globe / Light Source included: Yes
Globe / Light Source qty: 1
Globe Type: LED integrated SMD
Installation Required: Yes (by Licensed Electrician only)
Insulation class: IC-4
IP Rating: IP44
Lead and Plug: Yes
Lumens: 800
Voltage Input: 240V
Replacement Warranty: *5 Years
Wattage (max): 9

Product Maintenance

Care Instructions: Do not use strong liquid cleaners,Wipe clean with a dry cloth

Dimensions

Downloads

Installation Manual

Data Sheet

Colour and Material

Fixture Color: Black
Fixture Material: Polycarbonate,Aluminium,Plastic
Cable Color: Black
Cable Material: PVC
Diffuser Color: Clear
Diffuser Material: Plastic

Size

Fixture Diameter (cm): 10.60
Fixture Height (cm): 7.00
Fixture Weight (Kg): 0.23
Cut Out (cm): 9

Specifications

Approvals: RCM
Assembly Required: No
Beam Angle (degree): 60
Box Contents (degree): Instruction
Color Kelvin: 3 CCT (3000k - 4000k - 5000k)
Color Rendering: >80
Color Temperature: Warm White; Natural White; Cool White
Dimmable: Yes - TRIAC
Globe / Light Source included: Yes
Globe / Light Source qty: 1
Globe Type: LED integrated SMD
Installation Required: Yes (by Licensed Electrician only)
Insulation class: IC-4
IP Rating: IP44
Lead and Plug: Yes
Lumens: 800
Voltage Input: 240V
Replacement Warranty: *5 Years
Wattage (max): 9

Product Maintenance

Care Instructions: Do not use strong liquid cleaners,Wipe clean with a dry cloth

Dimensions

Downloads

Installation Manual

Data Sheet
